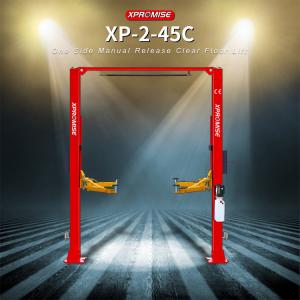

High Quality Cheap Price Garage Repair Equipment Two Post Lift

XP-2-45C

One Side Manual Release Clear Floor Lift

TECHNICAL SPECIFICATIONS

Lifting Capacity：4500kg

Lifting Height：1900mm

Min. Height：120mm

Through Width：2550mm

Inner ColumnWidth：2865mm

Total Width：3650mm

Lifting Time：50s-60s

Motor Power：3.0KW-380V or3.0KW-220V

Rated Oil Pressure：24MРа

Weight：730kg

Note:According to user requirements for different voltage and frequency product (specific parameters see the equipmentsigns.)

1.Laser cutting 5mm columns, 470*390*16mm thick large base.

2.One side manual release.

3.Shot blasting surface dispose, advanced outdoor powder, automatic electrostatic spraying, beautiful anddurable.

4.CNC bending machine, laser plate cutter, laser tube cutter, plasma cutting machine, welding robots and other large equipment processing，accurate size and surface smooth.

5.Germanhydraulic valve parts, Italy imported oil sealing and ball valve.

6.24V safety electronic control box.(Optional )

WARRANTY：Whole machine warranty 2 years.

1.Integral Forming Slide Table

2.3+2 Arm, with Toe Protection Guard Bar(Optional)

3.Butterfly Stiffener

4.Anti-clamp Guard

5.4*4chain

6.Explosion-proof Valve

7.Bowl Pattern and Single Screw Pad+height Adapter

8.Chain Shield

9.Emergency Hand Pump（Optional）
